| Place of Origin | China |
| Brand Name | UNICOMP |
| Certification | CE, FDA |
| Model Number | LX9200 |
| Minimum Order Quantity | 1 Set |
| Price | Can negotiate |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Inline High-Precision 3D X-Ray Tomography for PCB and BGA Analysis Unicomp LX9200 X-Ray inspection system Unicomp Technology 3D Inline X-ray Inspection Equipment——LX9200 As a new generation of upgraded and optimized LX9200 online inspection equipment, it can easily meet the multi-directional and
Highlight: Inline X Ray Inspection System, Unicomp X Ray For BGA Analysis, Unicomp X Ray For PCB Analysis
| Name | Unicomp X-ray Inspection Machine |
| Application | SMT, EMS, BGA, Electronics, CSP, LED, Flip Chip, Semiconductor |
| Industry | Electronics Industry |
| X-Ray Leakage | < 1 µSv/h |

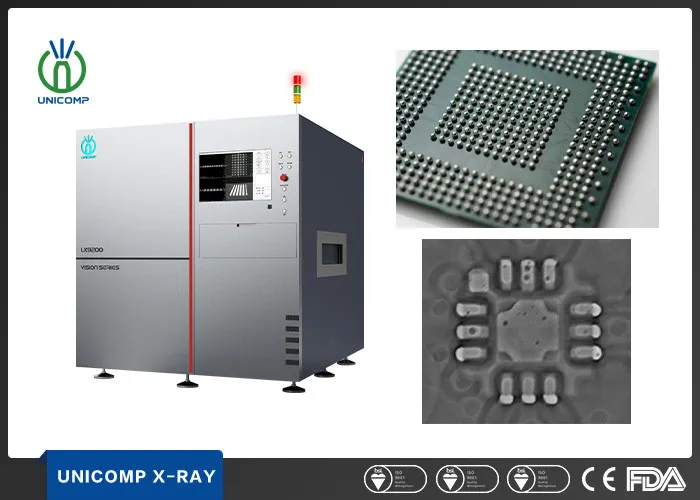

Inline High-Precision 3D X-Ray Tomography for PCB and BGA Analysis Unicomp LX9200 X-Ray inspection system
Unicomp Technology 3D Inline X-ray Inspection Equipment——LX9200
As a new generation of upgraded and optimized LX9200 online inspection equipment, it can easily meet the multi-directional and multi-angle product inspection needs of different users.
| SMT/PCBA | Package type: BGA, LGA, CSP, POP, SIP… Defect type: Void, HIP, Insufficient, Bridge… |
| Semiconductor | Package type: W/B, IC, F/C… Defect type: Void, Open, Short, Sweep, Solder ball… |
| Other areas | Battery, IGBT… |
| System Summary | |
| Footprint | 1640(W)*2070(D)*1800(H)mm |
| Machine Weight | ≈3450kg |
| Power Supply | 220AC/50Hz |
| Power | 5.5 kW |
| X-ray Leakage | < 0.5µSv/h |
| Imaging System | |
| Tube Type | Closed |
| Max. Voltage | 130kV |
| Detector | FPD |
| Image Acquisition | 2D/2.5D/3D |
| Inspection Area | |
| Max. Inspection Area (M Size) | 255*330mm |
| Max. Inspection Area (L Size) | 440*550mm |
| Max.Inspection Area (XL Size) | 610*1200mm |
| PCBA thickness | 0.5~5mm |
| PCBA Craft side | 5mm |
| PCBA warpage compensation | ±2mm |
| Clearance Top | 70mm |
| Clearance Bottom | 40mm |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
