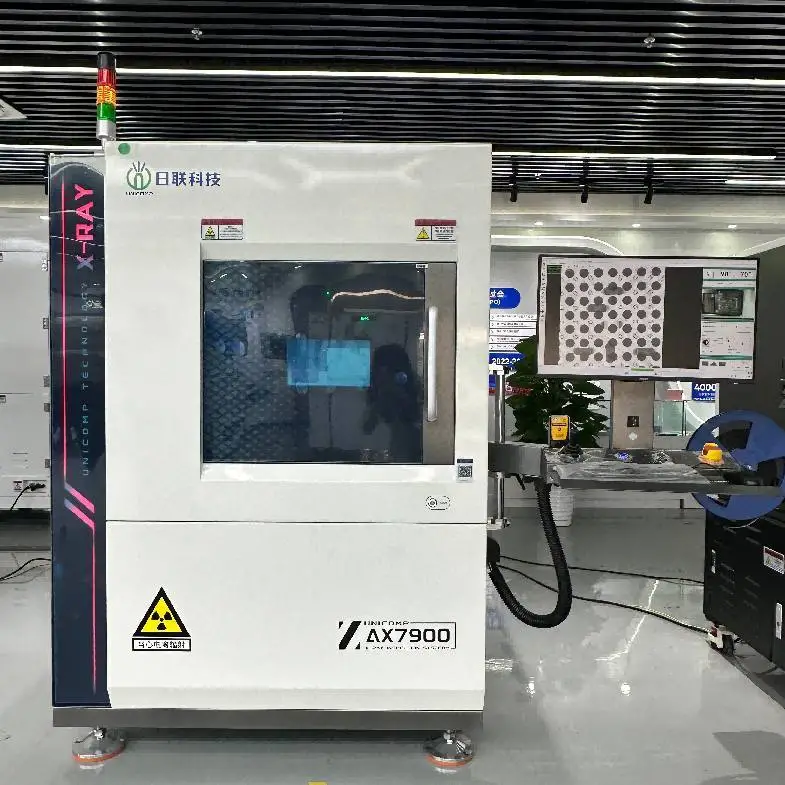

CSP LED Benchtop X Ray Machine 0.8KW Unicomp AX7900 DXI System

Venous Indwelling needle inside assembly quality inspection by Unicomp AX7900 X-ray machine Description: 90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnificat…

Highlight: CSP LED Benchtop X Ray Machine, 0.8KW Benchtop X Ray Machine, DXI System X Ray Security Scanner

Venous Indwelling needle inside assembly quality inspection by Unicomp AX7900 X-ray machine

Description:

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.

FEATURES:

• 90KV 5μm X-ray tube, FPD Detector.
• Multi-function workstation, X-Y multi-axis movement. ±60° “Arc” motion(Option).
• Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).
• Multi-function DXI image processing system.
• X/Y programming function for multiple image inspection routines
• Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.
• BGA void/area auto-measurement plus report generation.

APPLICATION:

• LED, SMT, BGA, CSP, Flip Chip Inspection.
• Semiconductor, Packaging components, Battery Industry.
• Electronic components, Auto parts, Photovoltaic Industry.
• Aluminum Die Casting, Moulding Plastic.
• Ceramics, Other Special Industries
