| Place of Origin | China |
| Brand Name | UNICOMP |
| Certification | CE |
| Model Number | UNC160 |
| Minimum Order Quantity | 1 Set |
| Price | Can negotiate |
| Payment Terms | T/T, L/C |
| Supply Ability | 10 sets per month |

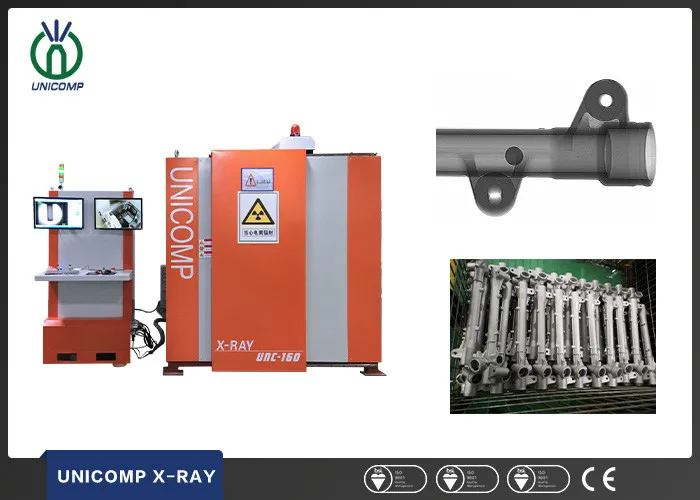

Industrial Radiography X-Ray Machine for Automotive Aluminum Castings NDT Inspection
Highlight: Aluminum Castings NDT X Ray Machine, 139μm NDT X Ray Machine, 6kw Industrial Radiography X Ray Equipment
| Name | X-ray Inspection Machine |
| Application | Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials |
| Tube Voltage | 160 kV |
| Industry | Industrial Nondestructive Testing |
| Size | 2100 (L) x 1720 (W) x 2470 (H) mm |
| X-Ray Leakage | < 1 µSv/h |
| Weight | 3.5 T |
| Power Consumption | 6 k |
Industrial Radiography X-Ray Machine for Automotive Aluminum Castings NDT Inspection
| System Parameters | Dimensions | 2100mm*1549mm*2468mm(L*W*H) |
| Equipment weight | 3.5T | |
| Power | 6KW | |
| Maximum penetration(AL/FE) | 100mm/20mm | |
| Detection range | Φ500*800mm | |
| Load weight | 50kg | |
| Work environment | 5-40° ≤80%HR | |
| Install power | Three-phase five wire system AC380V | |
| X-ray leakage dose rate | ≤1uSv/h | |
| X-ray Generator | Tube voltage | 160kV |
| Power | 480W | |
| Focal size | 0.5mm | |
| Detector | Image area | 145mm x 145mm |
| Resolution | 3.0LP/mm | |
| Detector ( Selection FPD ) | Image area | 17’’x17’’ |
| Pixel matrix | 3072mm*3072mm | |
| Pixel size | 139μm | |
| Frame rate | 9fps(1×1)30fps(2×2) | |
| Software Functions | Image processing | Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value |
| Image measurement | Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image; | |
| Motion control | Speed adjustment of each moving axis; CNC programming; manual operation | |
| Additional Function | Save the detection time of the bulk of the work piece via the CNC programmable control | |
| No dead angle detection with C-arm five-axis motion detection mechanism | ||
| Servo stepper motor drive to make the operation stability | ||
| Voltage regulator, isolation, filtering, grounding and other protective functions are complete | ||
| Set aside industrial cloud interface, data and pictures in real time upload, with traceability and large data analysis function (optional) | ||
