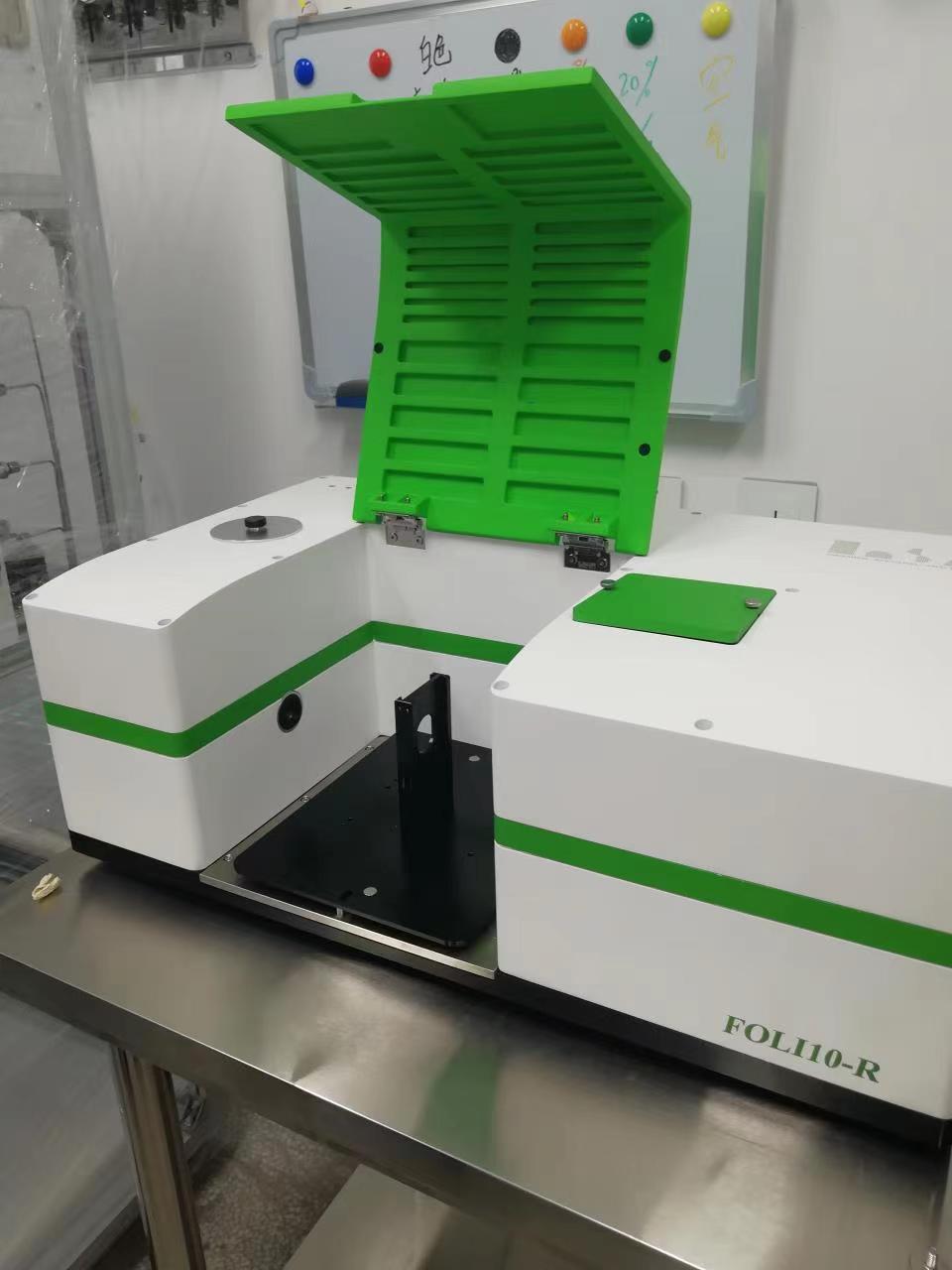

FOLI10-R FT-IR Spectrometer

Features:

FOLI10-R adopts integrated and completely sealing design and equips with moisture-proof ZnSe beam splitter and highly sensitive detector. The sample compartment can compatible with many accessories, such as IR transmission module, ATR, diffuse reflectance, etc. The in-situ diffuse experiment involves in-situ diffuse reflectance attachment, temperature controller and other auxiliary equipment, all these can be contained inside.

Hardware features:

• Interferometer：High stability cube corner interferometer. 10-year warranty
• Optical system: Golden mirror, the reflectivity is more than 5% higher than aluminum mirror. It offers superior optical performance, favorable oxidation resistance, high stability and reliability
• Detector: DLATGS, TEC MCT, LN MCT etc.
• Laser: High reliability, stability,  and long life(> 10 years)
• Source: High-performance with long life-time

Application:

FOLI10-R has various test modes for wide applications. Such as transmission, ATR, diffuse reflection modes.

Pharm & Life Science

Protein conformation and quantification

Quantification for Active Pharmaceutical Ingredients and excipient in water solution

Microorganism Identification

Characterization for the volatility and stability of medicine combined with TGA module

Polymer and Chemical Products

Detection and Characterization for the volatility and  decomposition combined with TGA module

Monitoring reaction process in lab combined with MIR fiber probe module

Surface analysis

Detection and Characterization for the Ultra-Thin film and mono-layer film

Characterization for the erosion process

Material Science

Detection of Emissivity of building materials

Evaluation for Optical material such as Infrared windows and mirrors

Study on black material with photoacoustic spectroscopy

Semiconductor Industry

Measurement for thickness of various non-metal films

Measurement for content of Carbon/Oxygen in silicon QC

Soil Analysis

Evaluation for nutrition and organic matter in soil

Study on the characteristic of different soil

Items	Standard Parameters	Optional Parameters
Spectral Resolution	≤1cm-1
Spectral Range	4000-400cm-1	4000-400cm-1
Source	Ceramic SiC
Beam Splitter	KBr	ZnSe
Detector	Room temperature DLaTGS	LN MCT, TEC MCT，LN InSb, LN Ge and TEC InGaAs etc.
Wavenumber Accuracy	< 0.01 cm-1
Signal to Noise	40000:1
Wavenumber Precision	< 0.1 cm-1
Modules	Optional measure modules for replacement
