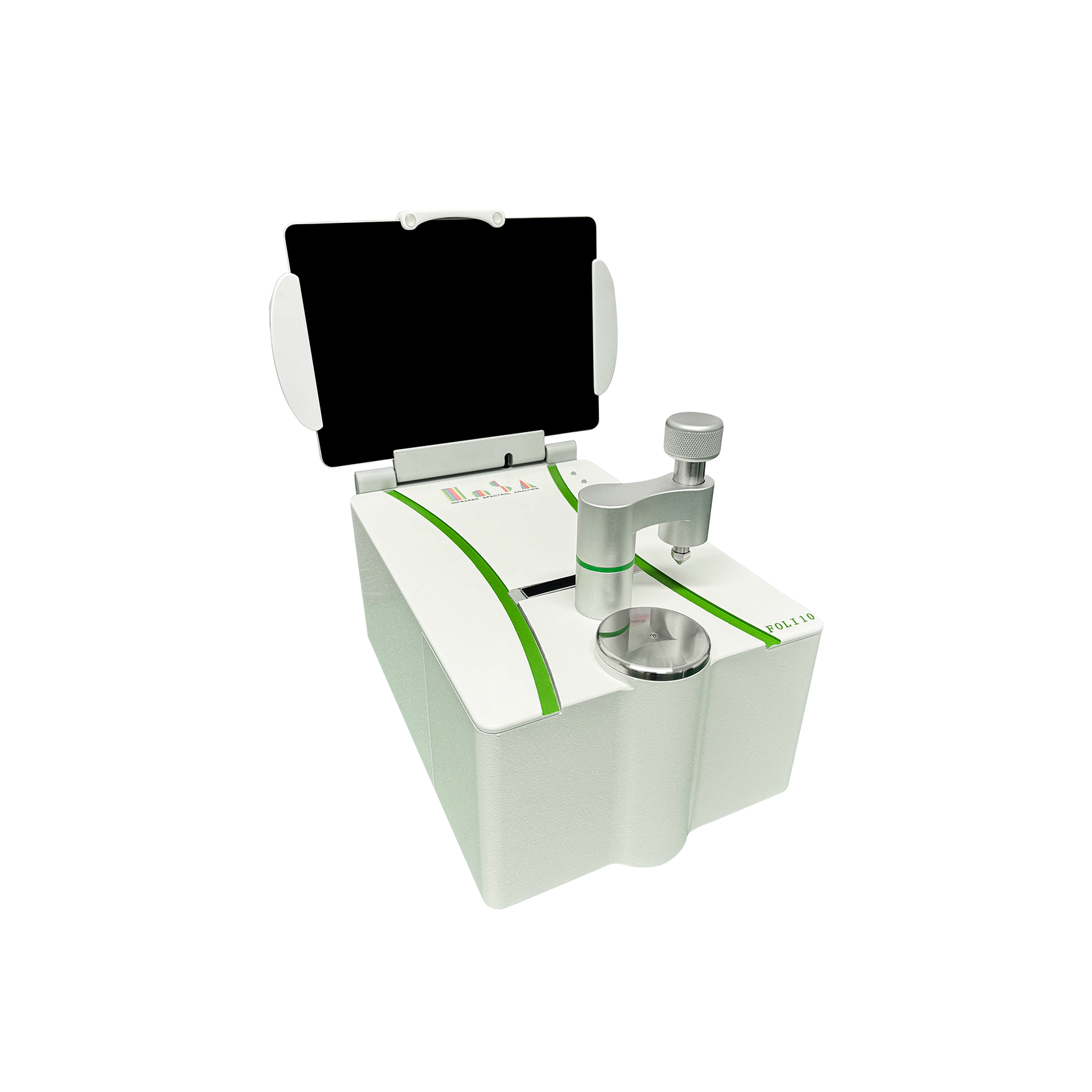

FOLI10 Plus FT-IR Spectrometer

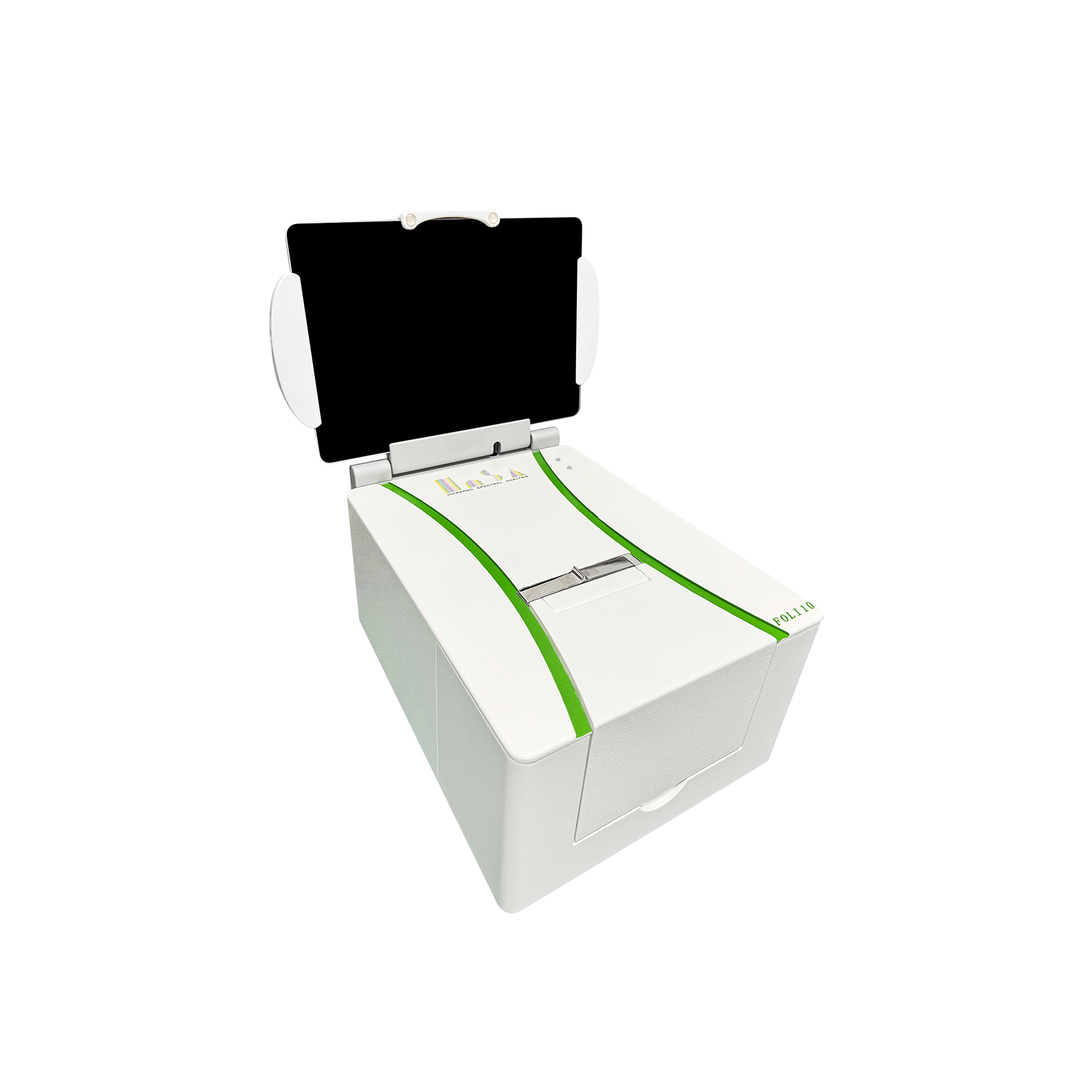

FOLI10 Plus FT-IR Spectrometer - Image 2

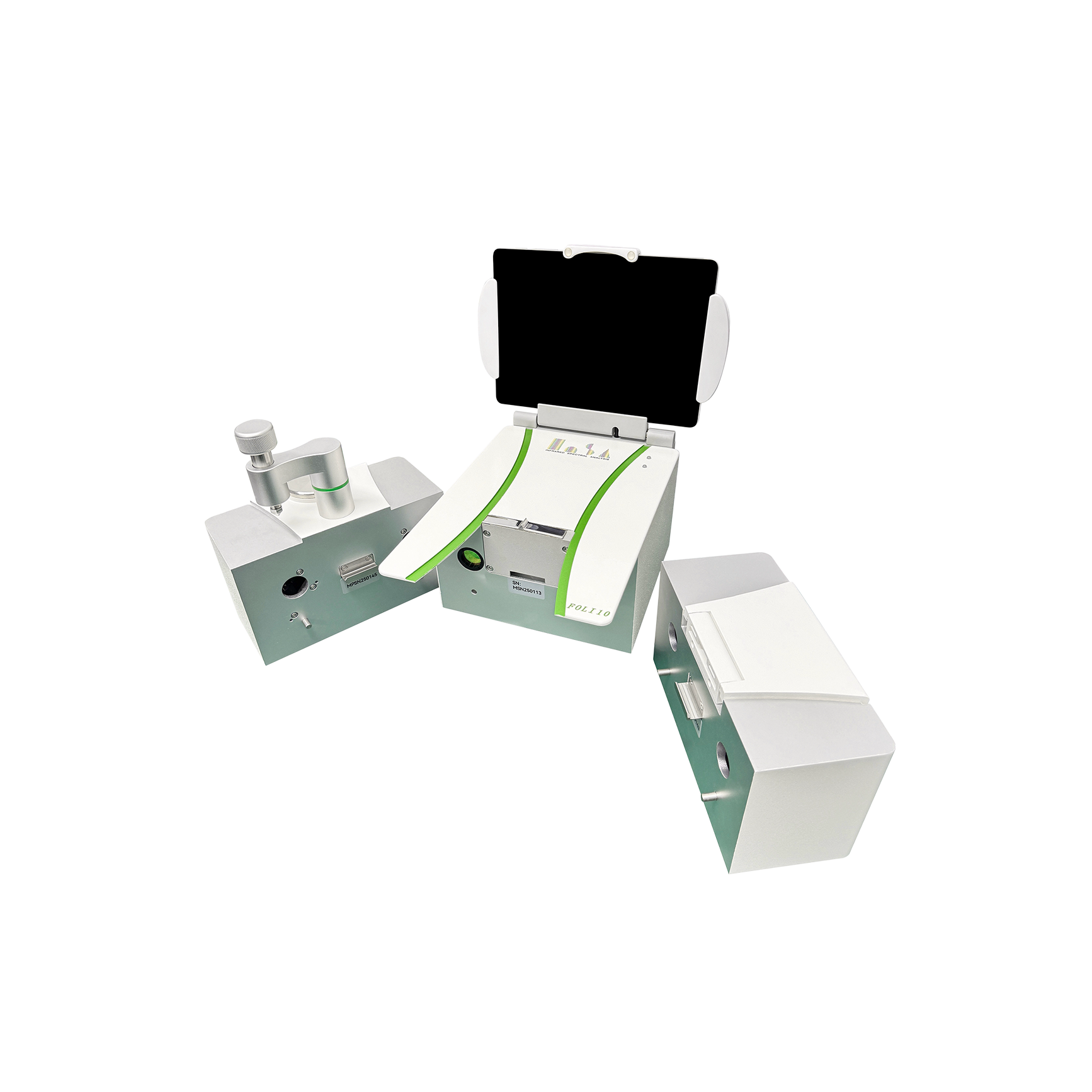

FOLI10 Plus FT-IR Spectrometer - Image 3

  • Outdoor Portable Rapid Analyzer
  • Equipped with touchscreen desktop
  • Design for quick replacement of ATR, transmission and other modules
  • Continuous differential reduction function to achieve the accurate analysis of the mixture
Category:

FOLI10 Plus Portable FT-IR spectrometer is an upgrade of the FOLI 10 FT-IR spectrometer, which is a highly integrated FT-IR device with compact design fit for field application.

Features:

  •  Foldable, angle-supported touch panel
  •  2 USB ports and 1 HDMI port
  • Highly stable cube-corner interferometer with high shock-resistance, consistent collimation, and a 10-year service life
  • Optical gold reflector with higher reflectivity and more resistant to oxidation
  • Moisture-proof detector with high-sensitivity
  • Solid-state laser with 10-year service life
  • Fast and reliable mid-infrared light source, with a long service life
  • Can be testing sulfuric acid, hydrochloric acid, nitric acid, and other corrosive substances using a pure diamond ATR crystal
  • Configurated with a wheeled carrying bag
  • Rechargeable battery with a large capacity
  • High detecting accuracy, intelligent infrared peak identification function
  • Combination of a rapid mixed search function and a mathematical approach that enables continuous spectrum stripping
  • Synthesize mixed spectrum automatically to check the rationality of the search result, display the relative proportions of each component
  • Easily switch between peak identification and rapid comparison to double-check each other’s results
  • Database covering new psychoactive substances, drug adulterants and diluents, explosives and hazardous chemicals, etc.
  • Optimized automatic mixture analysis algorithm to effectively identify mixture
  • Result directly given to user, easier for further examination
  • Auto alert function equipped in the software
  • Software automatically prompts whether to collect background function as well as customizing background time limit
  • Automatically generate reports and export to save or print
  • Support data transmission and management via WIFI, Bluetooth and other communication methods

Application:

  • Public security, customs, border defense, transportation and other fields, the site of controlled goods, smuggled samples and other suspicious goods rapid detection
  • Rapid detection of drugs, new psychoactive substances, explosives and hazardous chemicals
  • All kinds of bulk or solid powder, liquid, film, corrosive samples, transparent or translucent samples for direct detection
Items parameters
Spectral range 5000-500 cm-1
Spectral resolution ≤ 1 cm-1
Wave number accuracy < 0.01 cm-1
Interferometer Highly stable cube-corner interferometer
Beam splitter Moisture-proof beam splitter for zinc selenide (ZnSe) in mid-infrared
Detector High-sensitivity DLaTGS detector with built-in ADC
Source  Long life Mid-infred ceramic light source
Lasers Solid-state laser ( lifetime >10 years)
Data interface two USB interface, one HDMI interface
Battery Rechargeable lithium-ion battery with 4 hours of continuous battery life
Automatic

Function

 Automatically search the database, and display the best results. Automatically saves search results or word documents  after clicking without human intervention required
PC 10-inch touch screen
Software Full English language processing software with intelligent one-click direct access to measurement and storage functions. more Functions：Infrared spectral measurement function, spectral data pre-processing function, spectral map fast comparison function, user-built standard spectral library function, quantitative analysis function, automatic deduction of diamond/CO2 absorption peaks function, intelligent spectral map recognition function, automatic report generation and printing function, etc.
Database Standard IR spectra database with over 10,000 spectra,  including spectra of easily controlled chemicals, cannabinoids, fentanyl substances, new active drugs, hazardous chemicals, etc.
Size 333Mm×285Mm×245MM
Weight 8 Kg
Operating

temperature

 -10°C to +40°C
Ttorage

temperature

 -20°C to +55°C
