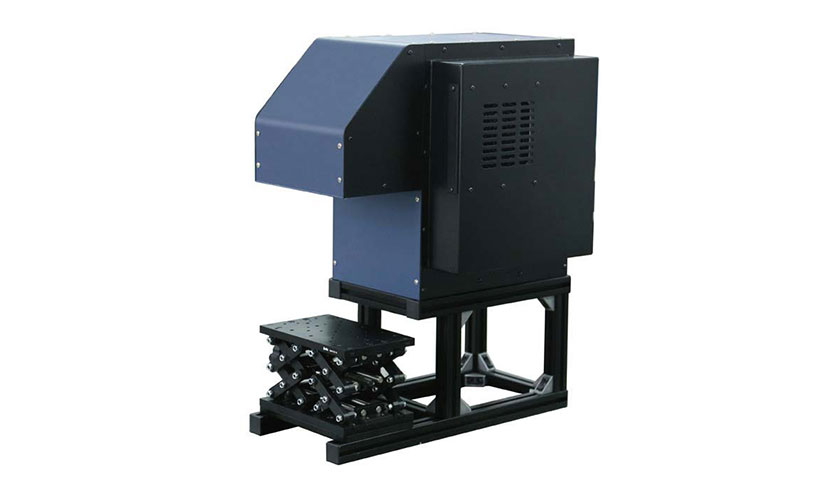

SolarIV Series Solar Cell Voltage and Current (IV) Characteristics Test System

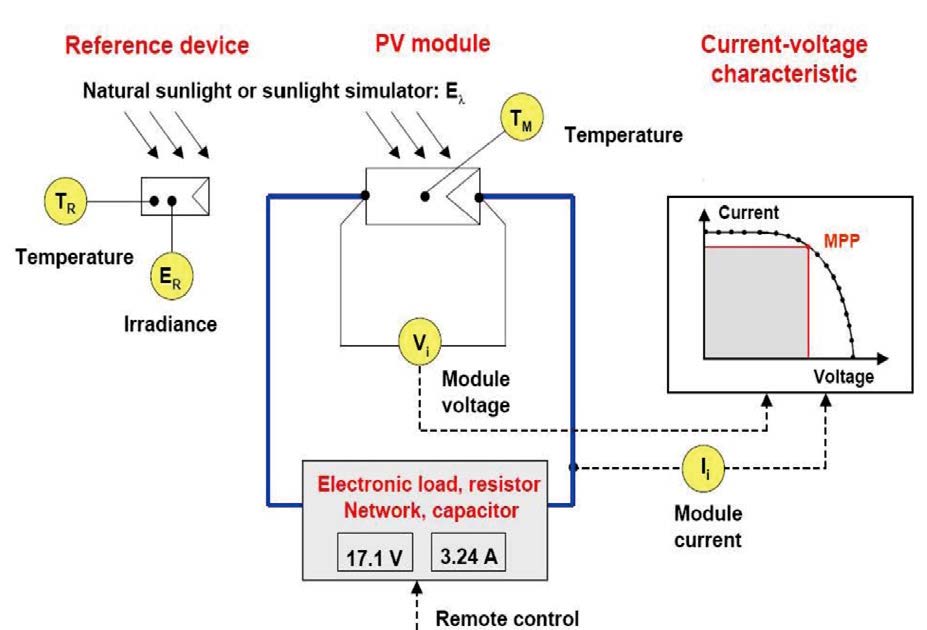

I-V characteristics measurement is a intuitive, effective and widely used method. By measuring the I-V characteristic curve, the main physical properties of photovoltaic devices can be obtained, including photoelectric conversion efficiency, short-circuit current, opencircuit voltage, and fill factor. These are important for the research, quality inspection and application of photovoltaic devices. Zolix provides cost-effective I-V characteristic measurement systems and provides complete and professional technical support.

Main Functions:

• Measure the I-V curves of solar cells under the irradiated and dark field conditions;
• Measure solar cell short-circuit current, short-circuit current density,open-circuit voltage, maximum power, maximum power current,maximum power voltage, fill factor, photoelectric conversion efficiency,series resistance, parallel resistance;
• Realize forward and reverse speed regulation scanning and dark current deduction function
• Calibrated Monocrystalline Silicon Cell correction function;
• Automatic cycle scanning.

Features:

• Complete I-V characteristic measurement and data processing analysis
• The irradiation direction can be changed to meet test requirement
• Compatible with high-precision sourcemeter, providing accurate measurement results
• Compliant with IEC 60904-9 international standard
• Professional probes improve measurement accuracy
• Vacuum adsorption table is convenient for fixing samples
• Graphical display is more intuitive
